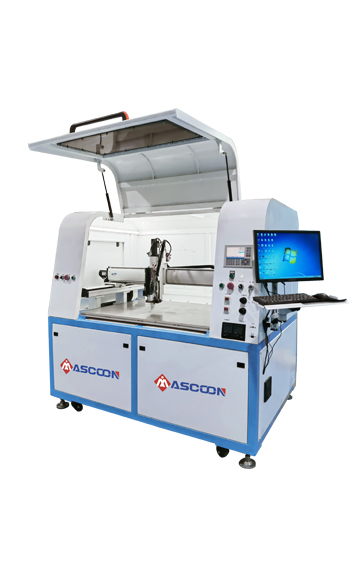

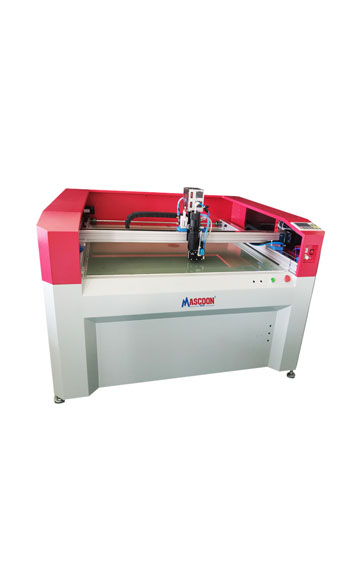

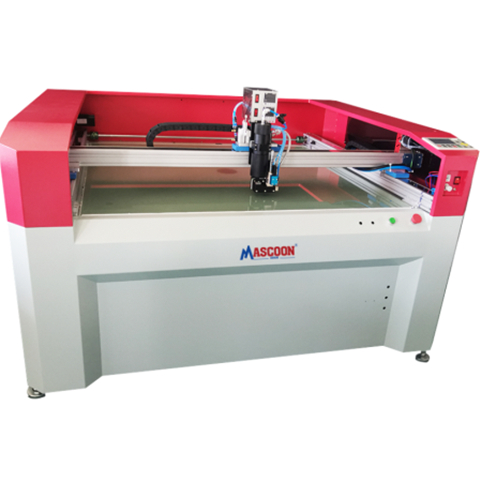

Mascoon single station single head jet valve PUR dot glue machine MS-1MJ is a professional and intelligent seamless dot glue machine machine for making seameless bra, underwear, sportswear, sports bags, sports shoes and more.
Working Max Speed:
0~30M/min
Working Pressure:
0.6Mpa
Adjustable temperature:
0~100℃
Power Supply:
AC220V 50~60Hz/1KW
Mascoon single station single head jet valve PUR dot glue machine MS-1MJ which can replace manual gluing and realize the intelligent production of seamless bras, underwear, yoga clothes, shoes, bags and others. English operating system is easy to use and understand, but also through the U disk and computer directly upload and download program files, convenient data management and storage.
The glue dispensing function can draw and apply points, lines, surfaces, arcs, and irregular curves on clothes and fibers. The size of glue, speed of glue spread, dispensing time and time of halting dispensing can be set. No glue seepage, glue leakage. Applicable glue: PUR hot met adhesive, Epoxy Resin, UV glue, Red glue and others.
Hot pressing is carried out within 4 hours after PUR dispensing. It is suitable for industries such as underwear, clothing, Led lens, shoe material, electronics, automobile, 3C and so on.
1. Adopting advanced technology of high speed jet, single head jet valves dispensing.
2. Internal configuration with booster pump and gas storage tank: make the air source more stable, more uniform and full dispensing.
3. Industrial control chart, accurate and simple positioning, easy to learn and understand.
4. Controlled by imported diagrams: the operation interface is simple and it's convenient to change the drawing.
5. 5050 square welding: The equipment frame is stable and firm, more suitable for high-speed movement operation.
6. Easy to replace the nozzle, point size controllable.
7. Pure screw module configuration: the dispensing accuracy is high and the movement won't be shake, long service life.
Techspecs:
Model | MS-DJ201 | Working Table size | 1.75m*0.9m |
Configuration | Single valves | Working Pressure | 0.6Mpa |
Stroke XYZ | Transmission Mode | servo screw + switching plate (belt) | |
Max Speed | 0~30M/min | Control Mode | Point, line, straight line, arc, circle, square glue, continuous spray dot or line |
Working power supply | AC220V 50~60Hz/1KW | Adjustable temperature | 0~100℃ |
Machine Weight | 250Kg | Nozzle | The size can be customized |

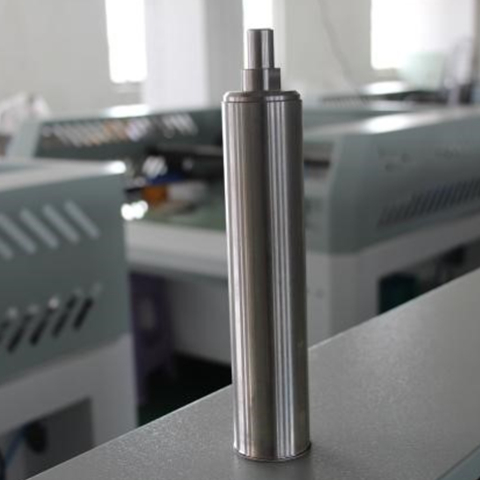

Glue Barrel | Pur 300ml | Heating Qty | 2pcs |
