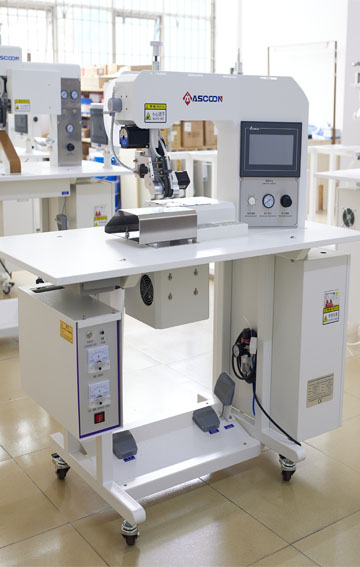

Ultrasonic seamless gluing and trimming machine MS-28UCP/38UCP

Mascoon Ultrasonic seamless gluing and trimming machine MS-28UCP/38UCP has a touch screen control, easy and convenient to operate, and it's suitable for gluing, trimming and taping of all kinds of fabrics.

Power Supply Voltage:

1P/AC220V 50/60Hz

Power:

0.8KW

Compressed air:

5kg/cm²

Machine Weight:

130kg

Machine Size:

1220mm(L)*700mm(W)*1400mm(H)

  • Functions and Features

    1. We could select the suitable functions according to requirement: Gluing and trimming function or Gluing and trimming then bonding function.

    2. Edge cutting by ultrasonic, neat, smooth and no loose mouth.

    3. Touch screen control, easy and convenient to operate.

    4. Free adjustment on pressure and independent control on speed which is suitable for different work of fabric.

    5. With automatic control on temperature, it can be used for different fabrics and different film (belt) adjustment.

    6. With automatic feeding device, the tightness of film could be controlled according to the different tension.

    7. It is suitable for gluing, trimming and taping of all kinds of fabrics.

    Techspecs:

    Model

    MS-28UCP

    Power Supply Voltage

    1P/AC220V 50/60Hz

    Power

    0.8KW

    Working Width

    6-20mm

    Working Speed

    0~5M/min

    Compressed air

    5kg/cm²

    Machine Weight

    130kg

    Machine Size

    1220mm(L)*700mm(W)*1400mm(H)



    Model

    MS-38UCP

    Power Supply   Voltage

    1P/AC220V 50/60Hz

    Power

    0.8KW

    Working Width

    0-20mm

    Working   Speed

    0~8M/min

    Compressed   air

    5kg/cm²

    Machine   Weight

    130kg

    Machine Size

    1220mm(L)*700mm(W)*1400mm(H)
