What is a seamless fusing machine

Nov 10, 2021

What is Seamless Fitting Technology?

In recent years, “seamless” clothing has become more and more popular in the industry, but most of the industry’s understanding of seamlessness still remains at the level of seamless knitting, and there are currently two main types of technology for seamless clothing on the market. This is a piece of clothing that is first designed by computer three-dimensional software and then three-dimensionally knitted using a circular knitting machine. This process is mainly limited to the application of close-fitting and thin underwear. We can call it "seamless knitting technology." The other is a garment that uses ultrasonic waves and adhesives at the seam to be seamed or compounded. It can be designed as close-fitting underwear or functional outerwear in harsh outdoor environments. This process is called "Seamless Fitting Technology".

Seamless lamination technology can be divided into three types of lamination methods: no glue lamination, glue lamination, and film lamination according to the bonding mechanism. The three bonding methods need to use different bonding machines to complete. Such as a seamless fusing machine, seamless dot glue machine, and seamless pressing machine.

Seamless Fusing Machine and Its Application

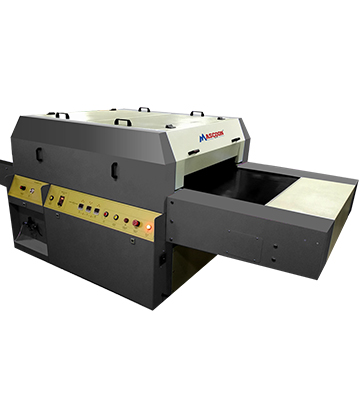

A seamless fusing machine is a machine that can fuse fabrics by adjusting the heat, pressure, and heat pressing time. Mascoon crawler type continuous heat pressing fusing machine MS-600L/900L are equipped with the latest design of pneumatic pressure shaft system, it could evenly distribute the colloidal particles between the cloth and interlining to further dissolve the colloidal particles to achieve better results. Mascoon crawler type continuous heat pressing fusing machine is equipped with the latest design of pneumatic pressure shaft system. It will not increase the pressure on the cloth and there's no influence on the touching feeling of the fabric at all. With a cooling device for discharging, it can make the fusible lining cool down quickly, thus improving the working efficiency. The pressure axis is independently controlled, which can achieve more subtle adjustment for the full adhesion of different cloth and interlining cloth. It's used the cylinder tightening device for the adjusting device of pneumatic and belt so that the conveyor belt could be more stable and durable. The inner tightening method and dual cleaning device of the belt greatly reduce the damage of the belt, making the using life of the belt improved. Two models, independent temperature control device which can heat the cloth gently so that the material overall color unity, to achieve high-quality requirements.


fusing machine


Mascoon Seamless Fusing Machine Functions and Features

1. Equipped with the latest design of a pneumatic pressure shaft system, it could evenly distribute the colloidal particles between the cloth and interlining to further dissolve the colloidal particles to achieve better results.

2. It's adopted the rotary plucking device for discharging to force the material stripped.

3. With a cooling device for discharging, it can make the fusible lining cool down quickly.

4. The inner tightening method is adopted to avoid the residual cloth and interlining cloth being attached to the shaft and greatly reduce the damage of the belt.

5. It's adopted the dual cleaning device for the belt which could be cleaned automatically outside and inside, making the using life of the belt improved.

6. With a max diameter of 145mm and a silica gel axis design, it could be suitable for all kinds of materials.

7. For model MS-600L, it's divided the 6 groups of the heating area into 2 groups of independent devices which are designed to heat the cloth gently and the interlining cloth more delicately. It reaches 1.3m long for the heating area, making the belt stick to the cloth more effectively and the overall color of the material be unified to achieve high-quality requirements.

8. For model MS-900L, it's divided the 9 groups of the heating area into 3 groups of independent devices which are designed to heat the cloth gently and the interlining cloth more delicately. It reaches 1.6m long for the heating area, making the belt stick to the cloth more effectively and the overall color of the material be unified to achieve high-quality requirements.

Seamless Fusing Machine Supplier

MASCOON is focused on providing the best seamless solutions to our clients. We specialize in supplying kinds of seamless bonding machines, folding machines, gluing machines, hot air seam sealing machines, ultrasonic cutting machines, label printing machines, label cutting machines, etc. Welcome to contact us if you have any needs.
